Omni Home Lift

Omni Home Lift By
Altitude Lifts

  • Infrared sensor switch + safety touch panel
  • Overspeed governor
  • Cabin Upperpan Finger Switch
  • Safety gear
  • 3D light curtain
  • Remote control

The MINl cabin is equipped with safety switches located Underpan and Upperpan. These switches detect any obstaclesin the path of the cabin. If the cabin
encounters an object, the system automatically stops the cabin and then
reversesits direction to clear the obstacle, ensuring safety and preventing
further contact or damage.

Schematic Diagram of Equipment Opening

  • Automatically open the door when arriving at the station
  • Light Curtain (3D)
  • Automatic diagnosis of elevator faults (error display on the display)
  • Overload protection (the device cannot operate when overloaded)
  • Downlink overspeed protection
  • Upper and lower limit protection
  • Upward top protection
  • Backup power supply(emergency descent in case of power outage)
  • Top and bottom safety touch panels
  • Anti-fall cover for second floor slab
  • Full height door/half height door safety device
  • Bottom light curtain protection
  • Electronic control system to prevent overcurrent / overload protection
  • Emergency stop button
  • anti-fall mechanical device
Installation EnvironmentIndoor
Shaft size950 × 1025 mm
Platform size850 × 625 mm

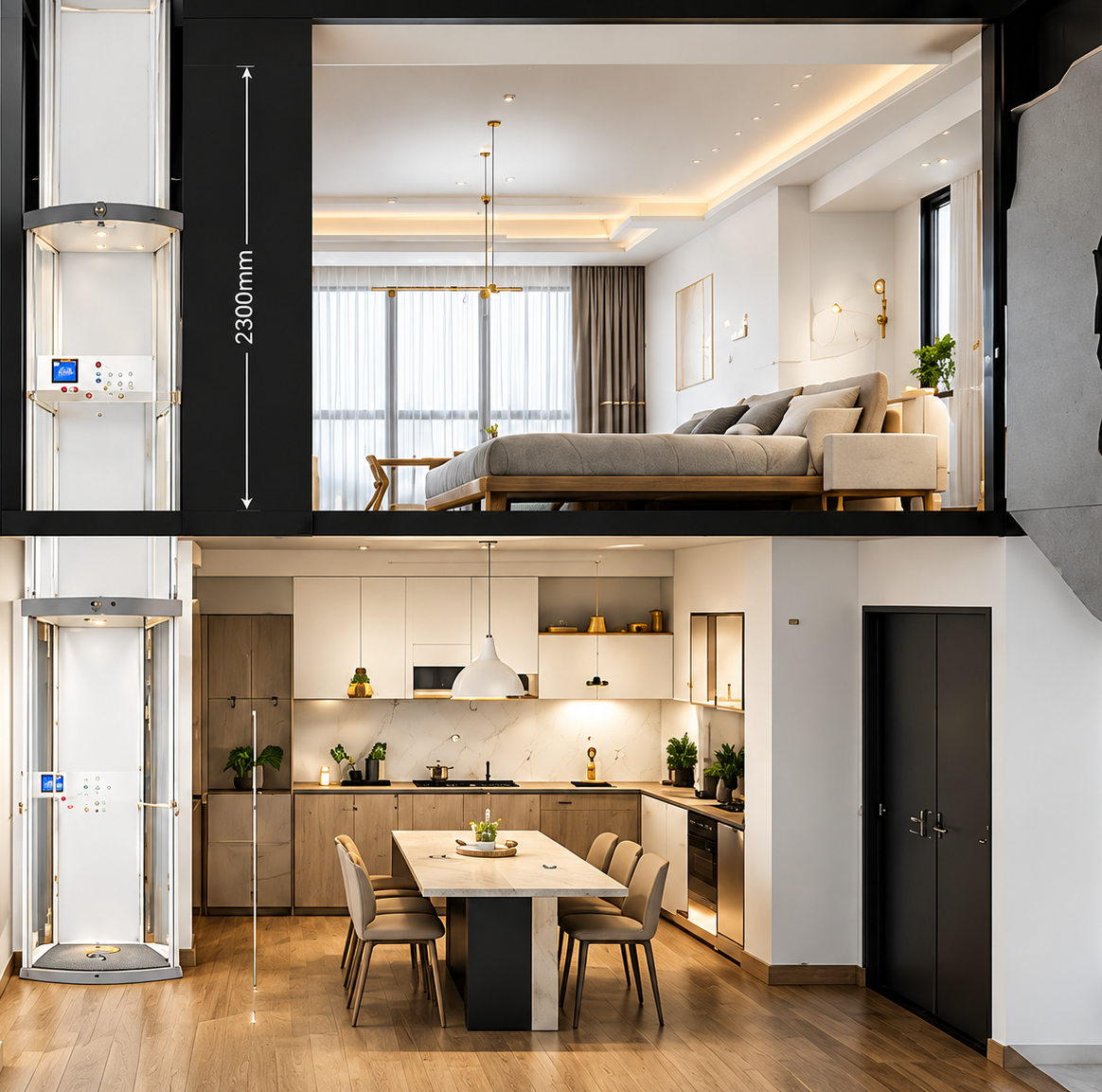

Over head2300 mm
Stop station2
Travel head4.5 m
Load capacity200 kg

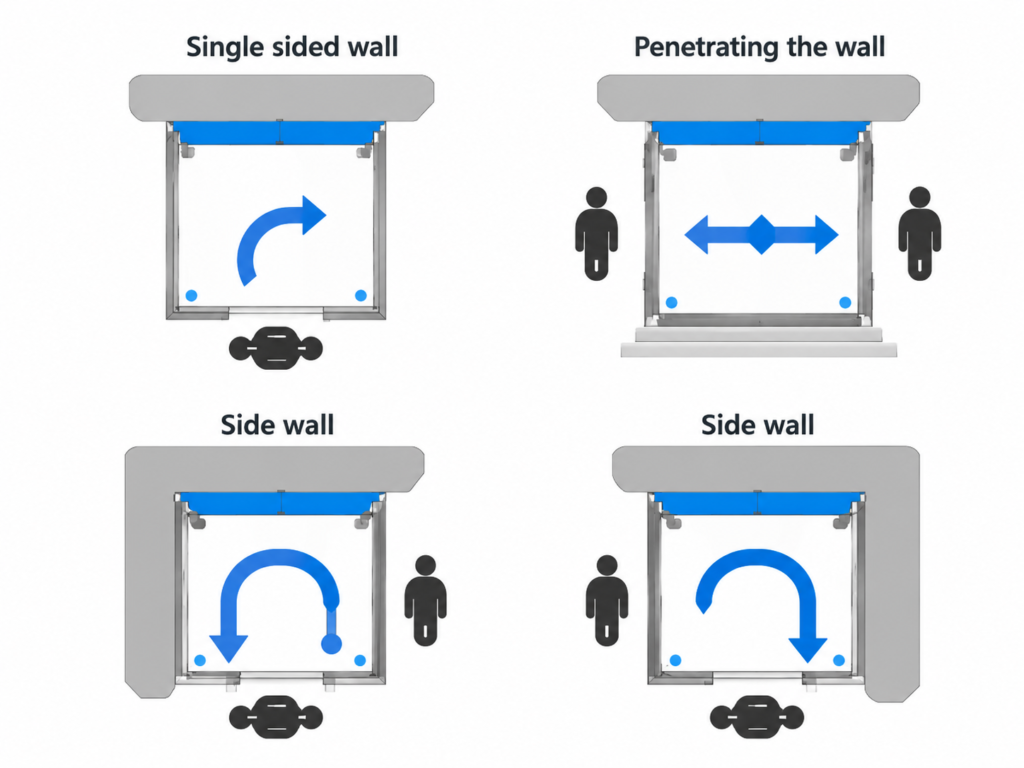

Access directionsEntry & Exit in 3 directions (front, left, right)
Pit90 mm
Power0.8 kW / AC 220 V / 50 Hz
Speed0.15 m/s
Gate controlAutomatic swing door / Manual door
Control methodAutomatic
Equipment noiseLess than 45 dB
Working temperature-5°C / 50°C
